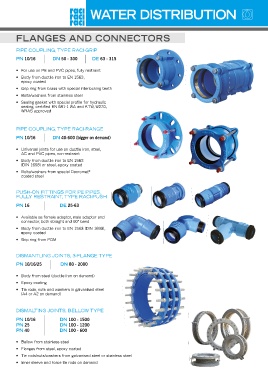

Page 12 - RACI

water distribution

flANGes AND coNNecTors

PIPE CouPlINg, tyPE RaCI-gRIP

PN 10/16 DN 50 - 300 De 63 - 315

• For use on PE and PVC pipes, fully restraint

• Body from ductile iron to EN 1563,
epoxy coated

• grip ring from brass with special interlocking teeth

• Bolts/washers from stainless steel

• Sealing gasket with special profile for hydraulic
sealing, certified EN 681-1 wa and Ktw, w270,
WRAS approved

PIPE CouPlINg, tyPE RaCI-RaNgE

PN 10/16 DN 40-600 (bigger on demand)

• Universal joints for use on ductile iron, steel,
aC and PVC pipes, non-restraint

• Body from ductile iron to EN 1563
(DIN 1693) or steel, epoxy coated

• Bolts/washers from special Dacromet®
coated steel

PuSH-oN FIttINgS FoR PE PIPES,
Fully REStRaINt, tyPE RaCI-PuSH

PN 16 De 25-63

• Available as female adaptor, male adaptor and
connector, both straight and 90° bend

• Body from ductile iron to EN 1563 (DIN 1693),
epoxy coated

• grip ring from PoM

DISMaNtlINg JoINtS, 3-FlaNgE tyPE

PN 10/16/25 DN 80 - 2000

• Body from steel (ductile iron on demand)

• Epoxy coating

• Tie rods, nuts and washers in galvanised steel
(a4 or a2 on demand)

DISMaltINg JoINtS, BEllow tyPE

PN 10/16 DN 100 - 1500
PN 25 DN 100 - 1200
PN 40 DN 100 - 600

• Bellow from stainless steel
• Flanges from steel, epoxy coated
• tie rods/nuts/washers from galvanised steel or stainless steel
• Inner sleeve and force tie rods on demand
