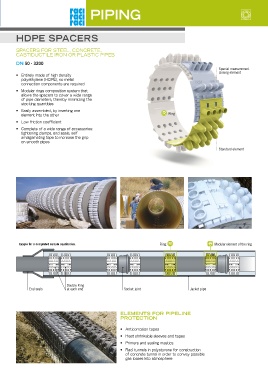

Page 15 - RACI

PiPiNG Ring Special measurement
closing element
HDPe sPAcers Standard element

SPaCERS FoR StEEl, CoNCREtE,
CaSt/DuCtIlE IRoN oR PlaStIC PIPES

DN 50 - 3200

• Entirely made of high density
polyethylene (HDPE), no metal
connection components are required

• Modular rings composition system that
allows the spacers to cover a wide range
of pipe diameters, thereby minimizing the
stocking quantities

• Easily assembled, by inserting one
element into the other

• low friction coefficient
• Complete of a wide range of accessories:

tightening clamps, end seals, self
amalgamating tape to increase the grip
on smooth pipes

Exaple for a completed sample application. Ring Modular element of the ring

End seals Double Ring Socket joint Jacket pipe
at each end

eleMeNTs for PiPeliNe
ProTecTioN

• Anticorrosion tapes
• Heat shrinkable sleeves and tapes
• Primers and sealing mastics
• Raci tunnels in polystyrene for construction

of concrete tunnel in order to convey possible
gas losses into atmosphere
