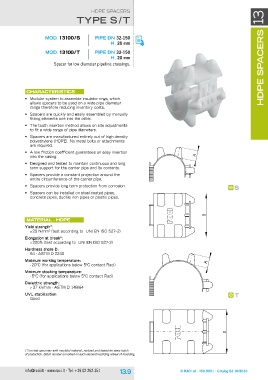

HDPe sPaCeRs H

type s / t Hdpe spacers 13

MOd. 13100 / s pipe dn 32-150
H. 20 mm

MOd. 13100 / t pipe dn 32-150
H. 20 mm

Spacer for low diameter pipeline crossings.

cHaracteristics HB s
t
• Modular system to assemble insulator rings, which
allows spacers to be used on a wide pipe diameter
range therefore reducing inventory costs.

• spacers are quickly and easily assembled by manually
fitting elements one into the other.

• the tooth insertion method allows on site adjustments
to fit a wide range of pipe diameters.

• spacers are manufactured entirely out of high density
polyethylene (HDPe). No metal bolts or attachments
are required.

• a low friction coefficient guarantees an easy insertion
into the casing.

• Designed and tested to maintain continuous and long
term support for the carrier pipe and its contents.

• spacers provide a constant projection around the
entire circumference of the carrier pipe.

• spacers provide long term protection from corrosion.

• spacers can be installed on steel-coated pipes,
concrete pipes, ductile iron pipes or plastic pipes.

Material - Hdpe

yield strength*:
≥ 25 N/mm2 (test according to UNI eN IsO 527-2)

elongation at break*:
> 200% (test according to UNI eN IsO 527- 2)

Hardness shore d:
64 - astM D 2240

Minimum working temperature:
- 20°C (for applications below 5°C contact Raci)

Minimum stocking temperature:
- 5°C (for applications below 5°C contact Raci)

dielectric strength:
> 37 kv/mm - astM D 149/64

uvl stabilization:
good

B

(*) on test specimen with moulded material, realized and tested for every batch © RACI srl - ISO 9001 - Catalog ed 10/2016
of production. Batch number is marked on each element recording nr/year of moulding.
