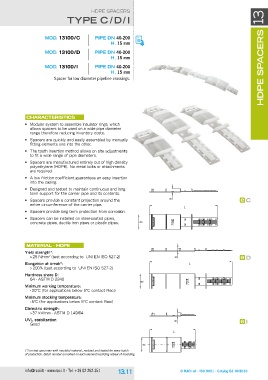

HDPe sPaCeRs Hdpe spacers 13

type c / d / i

MOd. 13100 / c pipe dn 40-200
H. 15 mm

MOd. 13100 / d pipe dn 40-200
H. 15 mm

MOd. 13100 / i pipe dn 40-200
H. 15 mm

Spacer for low diameter pipeline crossings.

cHaracteristics B c
• Modular system to assemble insulator rings, which H
L
allows spacers to be used on a wide pipe diameter B
range therefore reducing inventory costs. H d
• spacers are quickly and easily assembled by manually
fitting elements one into the other. B L
• the tooth insertion method allows on site adjustments H
to fit a wide range of pipe diameters. i
• spacers are manufactured entirely out of high density
polyethylene (HDPe). No metal bolts or attachments L
are required.
• a low friction coefficient guarantees an easy insertion © RACI srl - ISO 9001 - Catalog ed 10/2016
into the casing.
• Designed and tested to maintain continuous and long
term support for the carrier pipe and its contents.
• spacers provide a constant projection around the
entire circumference of the carrier pipe.
• spacers provide long term protection from corrosion.
• spacers can be installed on steel-coated pipes,
concrete pipes, ductile iron pipes or plastic pipes.

Material - Hdpe
yield strength*:

≥ 25 N/mm2 (test according to UNI eN IsO 527-2)
elongation at break*:

> 200% (test according to UNI eN IsO 527-2)
Hardness shore d:

64 - astM D 2240
Minimum working temperature:

- 20°C (for applications below 5°C contact Raci)
Minimum stocking temperature:

- 5°C (for applications below 5°C contact Raci)
dielectric strength:

> 37 kv/mm - astM D 149/64
uvl stabilization:

good

(*) on test specimen with moulded material, realized and tested for every batch
of production. Batch number is marked on each element recording nr/year of moulding.
