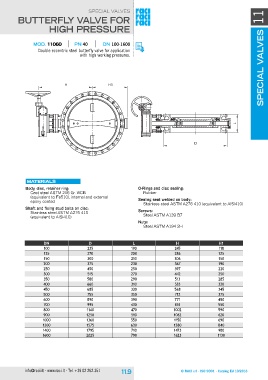

SPECIAL VALVES L

BUTTERFLY VALVE FOR SPECIAL VALVES 11
HIGH PRESSURE

MOD. 11060 PN 40 DN 100-1600

Double eccentric steel butterfly valve for application
with high working pressures.

H H1

D

Materials O-Rings and disc sealing:
Rubber
Body, disc, retainer ring:
Cast steel ASTM 216 Gr. WCB Sealing seat welded on body:
(equivalent to Fe510), internal and external Stainless steel ASTM A276 410 (equivalent to AISI410)
epoxy coated
Screws:
Shaft and fixing stud bolts on disc: Steel ASTM A139 B7
Stainless steel ASTM A276 410
(equivalent to AISI410) Nuts:
Steel ASTM A194 2H
DN D
100 235 L H H1
125 270 190 245 118
150 300 200 286 125
200 375 210 306 150
250 450 230 367 190
300 515 250 397 220
350 580 270 442 250
400 660 290 513 285
450 685 310 533 320
500 755 330 568 345
600 890 350 712 375
700 995 390 771 450
800 1140 430 851 550
900 1250 470 1002 590
1000 1360 510 1062 620
1200 1575 550 1150 690
1400 1795 630 1280 840
1600 2025 710 1473 980
790 1623 1130
