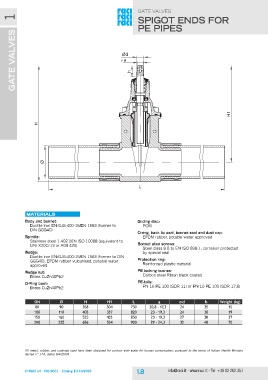

Page 12 - RACI

gate valves 1 gate valves

SPIGOT ENDS FOR
PE PIPES

Ød
a

h

H1

H

Ø

L

Materials Gliding disc:
POM
Body and bonnet:
Ductile iron EN-GJS-400-15/EN 1563 (former to O-ring, back lip seal, bonnet seal and dust cap:
DIN GGG40) EPDM rubber, potable water approved

Spindle: Bonnet allen screws:
Stainless steel 1.4021/EN ISO 10088 (equivalent to Steel class 8.8 to EN ISO 898-1, corrosion protected
UNI X20Cr13 or AISI 420) by special seal

Wedge: Protection ring:
Ductile iron EN-GJS-400-15/EN 1563 (former to DIN Reinforced plastic material
GGG40), EPDM rubber vulcanised, potable water
approved PE locking bushes:
Carbon steel Rilsan black coated
Wedge nut:
Brass CuZn40Pb2 PE-tails:
PN 16 PE 100 (SDR 11) or PN 10 PE 100 (SDR 17,6)
O-Ring bush:
Brass CuZn40Pb2

DN Ø H H1 L a Ød h Weight (kg)
35 15
80 90 358 304 730 20,8 - 17,3 24
38 19
100 110 403 337 820 23 - 19,3 24 38 37
48 70
150 160 525 433 850 23 - 19,3 27

200 225 656 534 900 29 - 24,3 32

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry
decree n° 174, dated 6/4/2004.
