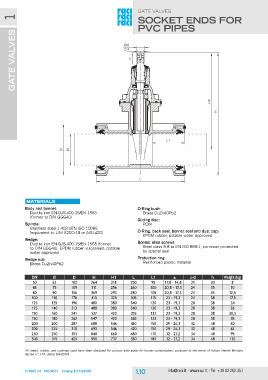

Page 14 - RACI
P. 14
gate valves 1 gate valves
SOCKET ENDS FOR
PVC PIPES
Ød
a
h
H1
H
L1
D
Ø
L
Materials O-Ring bush:
Brass CuZn40Pb2
Body and bonnet:
Ductile iron EN-GJS-400-15/EN 1563 Gliding disc:
(former to DIN GGG40) POM
Spindle: O-Ring, back seal, bonnet seal and dust cap:
Stainless steel 1.4021/EN ISO 10088 EPDM rubber, potable water approved
(equivalent to UNI X20Cr13 or AISI 420)
Bonnet allen screws:
Wedge: Steel class 8.8 to EN ISO 898-1, corrosion protected
Ductile iron EN-GJS-400-15/EN 1563 (former by special seal
to DIN GGG40), EPDM rubber vulcanised, potable
water approved Protection ring:
Reinforced plastic material
Wedge nut:
Brass CuZn40Pb2
DN Ø D H H1 L L1 a Ø d h Weight (kg)
30 8
50 63 102 264 218 250 95 17,8 - 14,8 21 35 10
35 12,5
65 75 109 311 256 260 100 20,8 - 17,3 24 38 17,5
38 24
80 90 156 369 293 280 105 20,8 - 17,3 24
38 26
100 110 176 413 325 305 115 23 - 19,3 24
38 30,5
125 125 196 480 380 340 120 23 - 19,3 28 38 35
48 60
125 140 213 488 380 340 130 23 - 19,3 28 48 62
48 95
150 160 241 537 420 355 133 23 - 19,3 28 48 135
150 180 262 547 420 365 133 23 - 19,3 28
200 200 287 688 546 410 150 29 - 24,3 32
200 225 310 693 546 420 150 29 - 24,3 32
250 250 351 840 660 480 170 32 - 27,2 34
300 315 425 950 737 530 180 32 - 27,2 34
All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry
decree n° 174, dated 6/4/2004.
