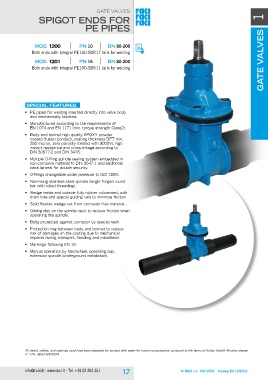

gate valves gate valves 1

spigOt ends fOr
pe pipes

MOd. 1200 pn 10 dn 80-200

Both ends with integral PE100-SDR17 tails for welding

MOd. 1201 pn 16 dn 80-200

Both ends with integral PE100-SDR11 tails for welding

special features

• Pe pipes for welding inserted directly into valve body
and mechanically blocked.

• Manufactured according to the requirements of
eN 1074 and eN 1171 (min. torque strength Class2).

• Body and bonnet high quality ePOXY powder
coated (fusion bonded), coating thickness DFt min.
250 micron, zero porosity (tested with 3000v), high
impact resistance and cross-linkage according to
DIN 30677-2 and DIN 3476.

• Multiple O-Ring spindle sealing system embedded in
non-corrosive material to DIN 3547-1 and additional
back lip-seal for double security.

• O-Rings changeable under pressure to IsO 7259.

• Non-rising stainless steel spindle (single forged round
bar with rolled threading).

• Wedge inside and outside fully rubber vulcanised, with
drain hole and special guiding rails to minimize friction.

• solid flexible wedge nut from corrosion free material .

• gliding disc on the spindle neck to reduce friction when
operating the spindle.

• Bolts protected against corrosion by special resin.

• Protection ring between body and bonnet to reduce
risk of damages on the coating due to mechanical
impacts during transport, handling and installation.

• Markings following eN 19.

• Manual operation by handwheel, operating cap,
extension spindle (underground installation).

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry decree
n° 174, dated 6/4/2004.
