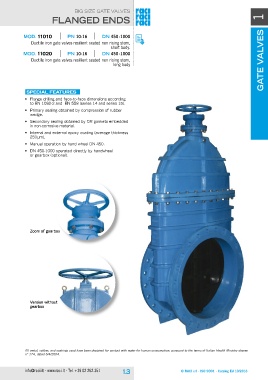

BIg sIZe gate valves gate valves 1
flanged ends
MOd. 11010 pn 10-16 dn 450 -1000
Ductile iron gate valves resilient seated non rising stem,
short body.
MOd. 11020 pn 10-16 dn 450 -1000
Ductile iron gate valves resilient seated non rising stem,
long body
special features
• Flange drilling and face-to-face dimensions according
to eN 1092-2 and eN 558 (series 14 and series 15).
• Primary sealing obtained by compression of rubber
wedge.
• secondary sealing obtained by OR gaskets embedded
in non-corrosive material.
• Internal and external epoxy coating (average thickness
250 µm).
• Manual operation by hand wheel DN 450.
• DN 450-1000 operated directly by handwheel
or gearbox (optional).
zoom of gearbox
version without
gearbox
All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry decree
n° 174, dated 6/4/2004.
