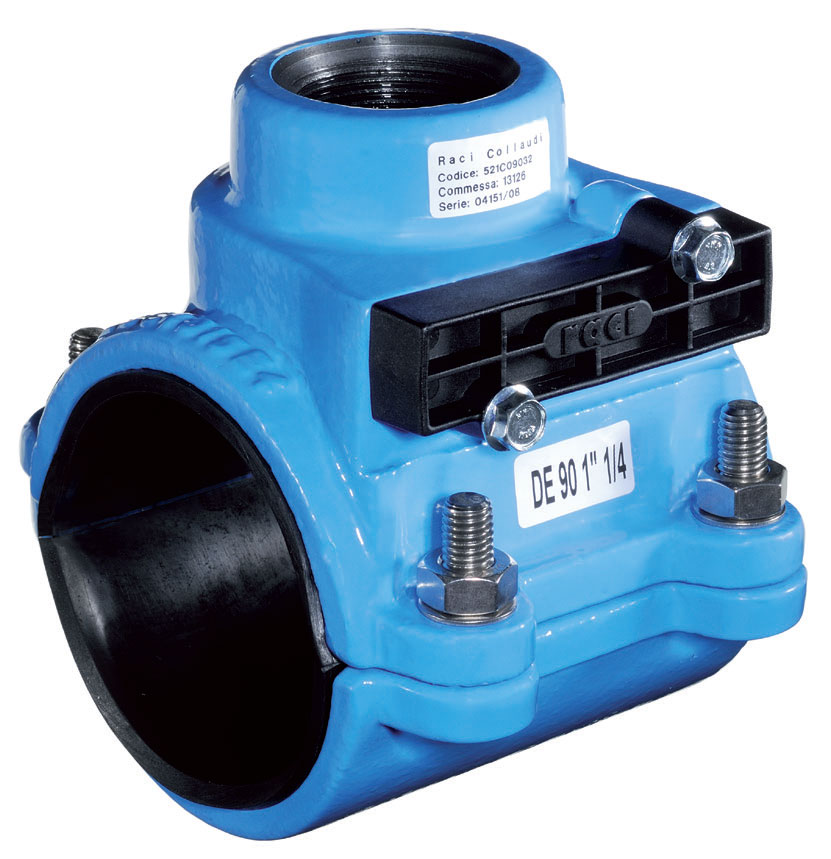

PIPE SADDLES SHUT OFF TYPE FOR PE AND PVC PIPES
SPECIAL FEATURES:
- Full collar type for use on plastic pipes (PE / PVC).
- Body high quality epoxy powder coated (fusion bonded), coating thickness DFT min. 250 microns, zero porosity (tested with 3000V), high impact resistance and cross-linkage according to DIN 30677-2 and DIN 3476.

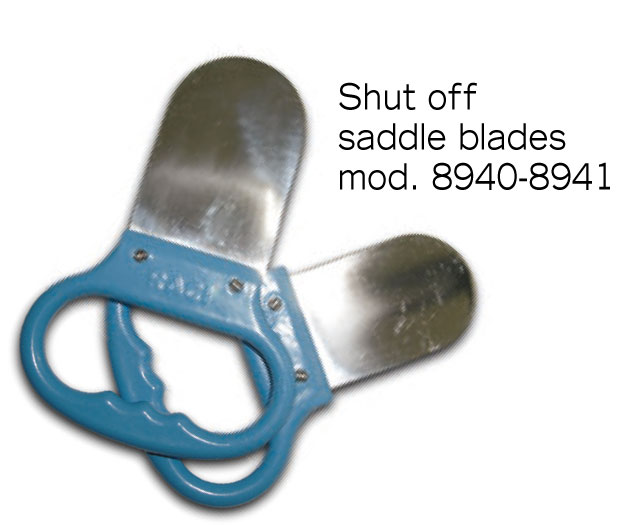

- Complete with integral double O-ring sealing shut-off device for under pressure drilling (hot tapping).
- Inside fully rubber lined with integral multiple O-ring sealing gasket at the outlet.
- Stud bolts for easy installation, fully corrosion-free.
- Threads according to EN 10226.
MATERIALS:
Body:
Ductile iron EN-GJS-400-15 / EN 1563 (former to DIN GGG40)
Gasket:
Rubber, potable water approved
Stud/bolts/nuts/washers:
Stainless steel 1.4301 / EN ISO 10088 (correspondent to AISI304)
Shut-off device:
Guides from POM
O-rings from rubber (potable water approved)
Cover from polyamide PA
Bolts from stainless steel A2-70 EN ISO 3506
All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry decree n° 174, dated 6/4/2004.
