SPECIAL FEATURES:

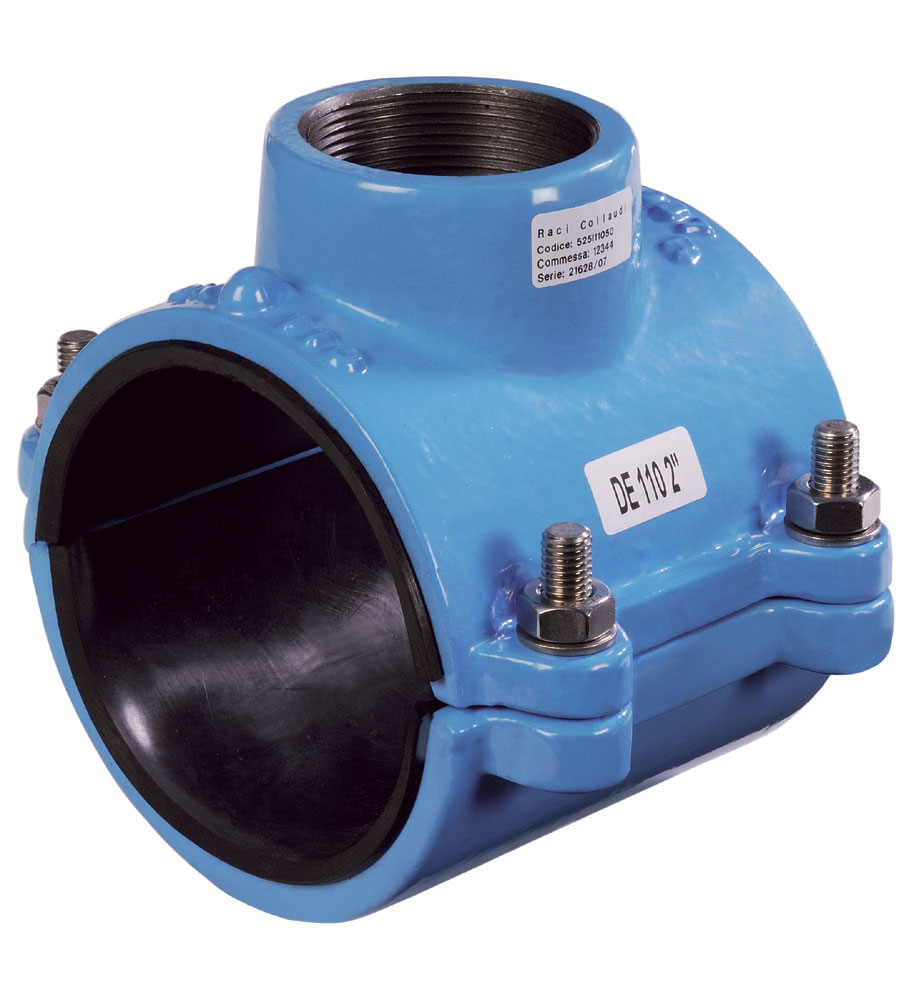

• Full collar type for use on plastic pipes (PE / PVC).
• Body high quality EPOXY powder coated (fusion bonded), coating thickness DFT min. 250 microns, zero porosity (tested with 3000V), high impact resistance and cross-linkage according to DIN 30677-2 and DIN 3476.
• Inside fully rubber lined with integral multiple O-ring sealing gasket at the outlet.
• Stud bolts for easy installation, fully corrosion-free.
• Threads according to EN 10226.

MATERIALS:

Body:
Ductile iron EN-GJS-400-15 / EN 1563 (former to DIN GGG40)

Gasket:
Rubber, potable water approved

Stud/bolts/nuts/washers:
Stainless steel 1.4301 / EN ISO 10088 (correspondent to AISI304)

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry decree n° 174, dated 6/4/2004.
