bullet acquedottoPIPE SADDLES UNIVERSAL SHUT OFF TYPE


MOD. 8360| PIPES DN 40-150 | PN 16 | OUTLETS DN  3/4“ - 11/4“|
Reduced body for easy installation on little diameter pipes.

MOD. 8370| PIPES DN 50-400 | PN 16 | OUTLETS DN  3/4“ - 2“|
Standard body for every diameter.

collari di presa tipo universale per presa sottocarico 1

collari di presa tipo universale per presa sottocarico 2

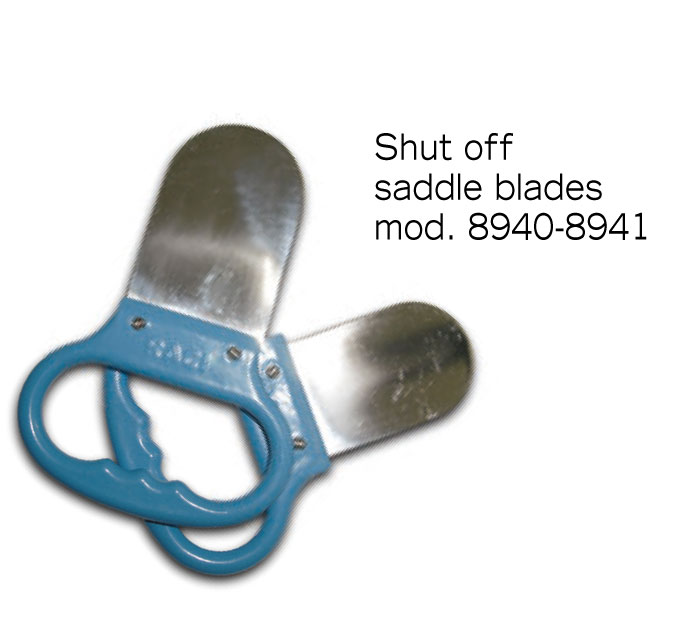

pipe saddles universal shut off type 1

collari di presa tipo universale per presa sottocarico 4

SPECIAL FEATURES:

  • Universal type for use on cast iron, ductile iron, steel and AC pipes.
  • One body for various dimensions of pipes.
  • Body high quality epoxy powder coated (fusion bonded), coating thickness DFT min. 250 microns, zero porosity (tested with 3000V), high impact resistance and cross-linkage according to DIN 30677-2 and DIN 3476.
  • Complete with integral double O-ring sealing shut-off device for under pressure drilling (hot tapping).
  • Multiple O-ring-profi le gasket for a reliable sealing (will be supplied with the saddle strap: available in four different measures and two different materials according to pipe dimensions and pipe material).
  • Threads according to EN 10226.
  • Closing torque: 80 Nm.

Black gasket for steel and cast or ductile iron pipes.
Blue gasket suitable for CA pipes.

collari di presa tipo universale per presa sottocarico 5

MATERIALS:

Body:
Ductile iron EN-GJS-400-15 / EN 1563 (former to DIN GGG40)

Gasket:
NBR rubber 90° Shore ±5° (standard version black colour)
NBR rubber 70° Shore ±5° (special version blue colour)

Shut-off device:
Guides from POM
O-rings from rubber (potable water approved)
Cover from polyamide PA
Bolts from stainless steel A2-70 EN ISO 3506

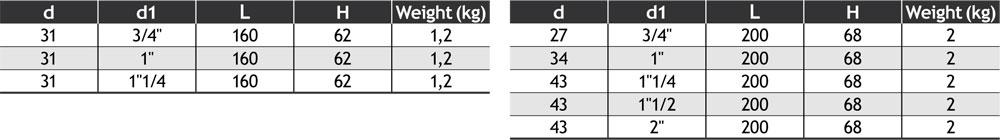

pipe saddles universal shut off type table

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry decree n° 174, dated 6/4/2004.
