bullet pipingPIPE END SEALS EKF TYPE

MOD. 13500 | DN INT. PIPE   0-150 mm|
DN EXT. PIPE  100-600 mm|

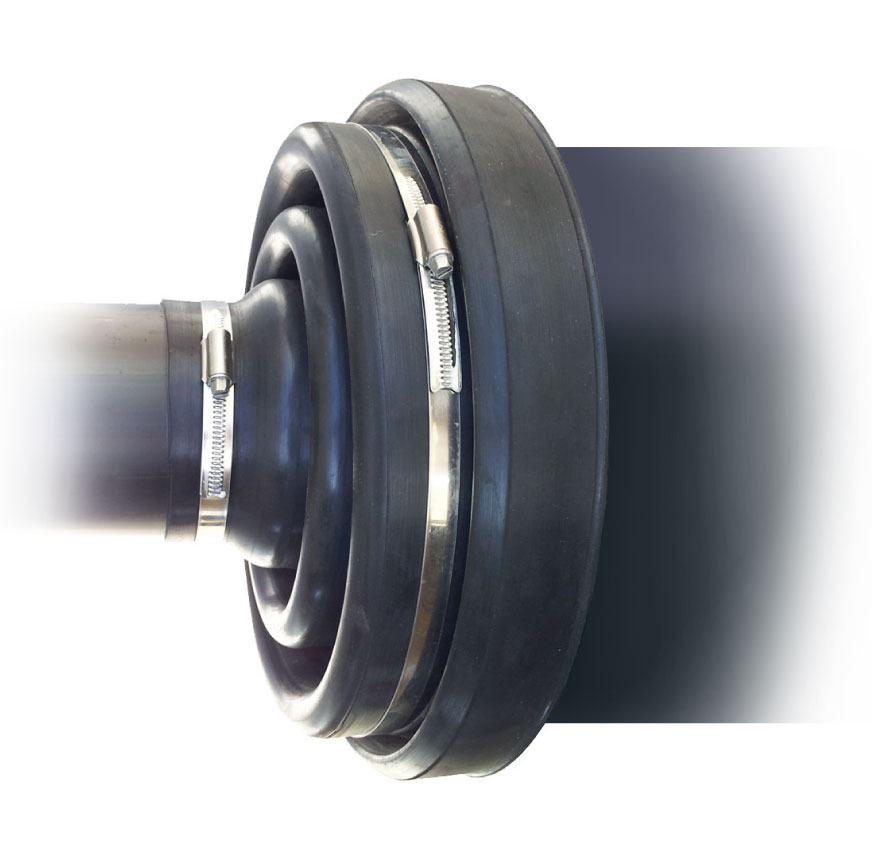

Multisize end seals for sealing the gap between the carrier pipe and the casing pipe at the ends of crossing.



guaine fine tubo espansit tipo ekf 1



guaine fine tubo espansit tipo ekf 2

CARATTERISTICHE:
  • Special frustum cone shape that allows the eKF end seal to be shortened according to the diameter of the main pipe.
  • Suitable for a large number of carrier/casing pipe/end seal combinations.
  • Can be used only on new pipelines.
  • Cutting operations are made easier by the diametrical lines marked on the outer surface.
  • Reduction in stock inventory due to the possibility of being applied on different diameters.

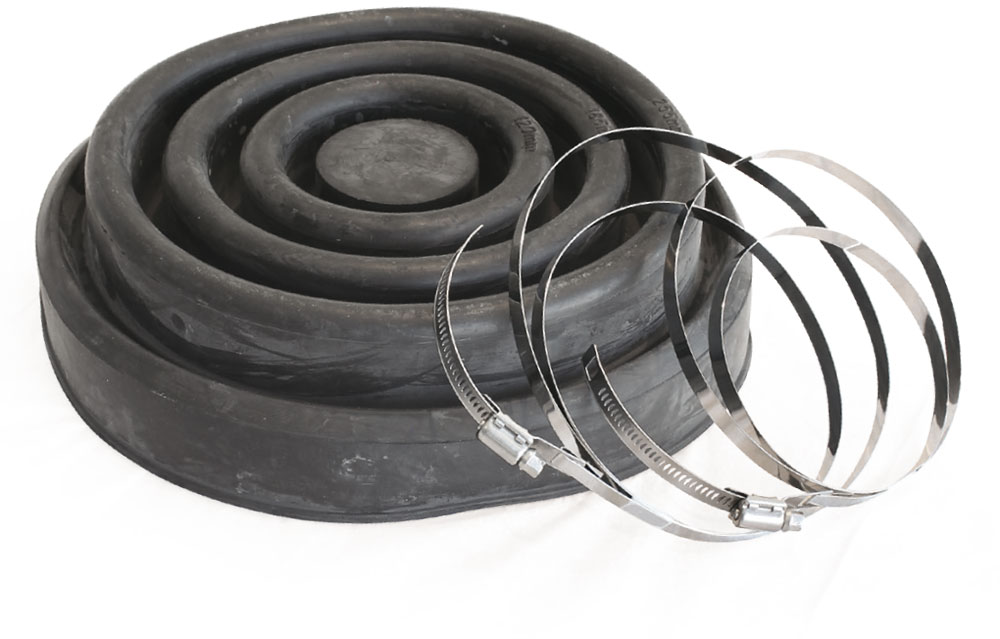

  • Fastening on pipes with metal straps (included).



MATERIALS:

Rubber EPDM:
Hardness 50 ± 5 shore a (UNI 4916)

Thickness:
3-4 mm

Colour:
Black

Tensile strength:
~11,6 MPa (UNI 6065)

Elongation:
~ 640 % (UNI 6065)

Straps:
Stainless steel



guaine fine tubo espansit tipo ekf 4

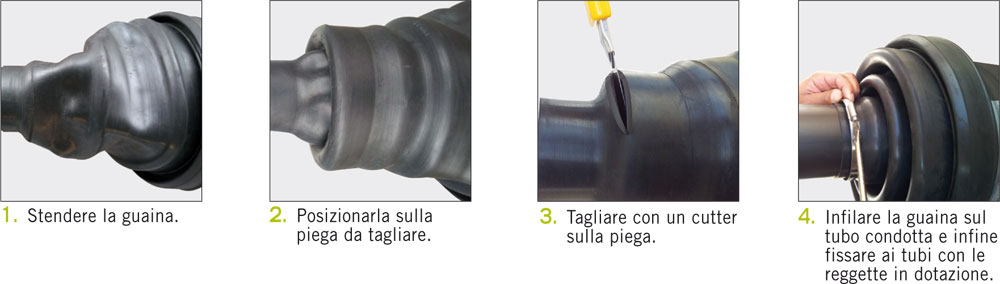

COME APPLICARE LE GUAINE MULTISIZE:

guaine fine tubo espansit tipo ekf 3
