bullet pipingACCESSORIES FOR SPACERS TOOL FOR SPACERS


MOD. 13204 (A75) | H.MAX 18-75 mm|
MOD. 13205 (A200) | H.MAX 90-200 mm|
FOR COLLAR FAMILIES M / N / P / Q / L

MOD. 13206 (B75) | H.MAX 25-75 mm|
MOD. 13207 (B130) | H.MAX 90-130 mm|
FOR COLLAR FAMILIES E / H

MOD. 13208 (C90) | H.MAX 8-90 mm|
FOR COLLAR FAMILIES M / N / F / G

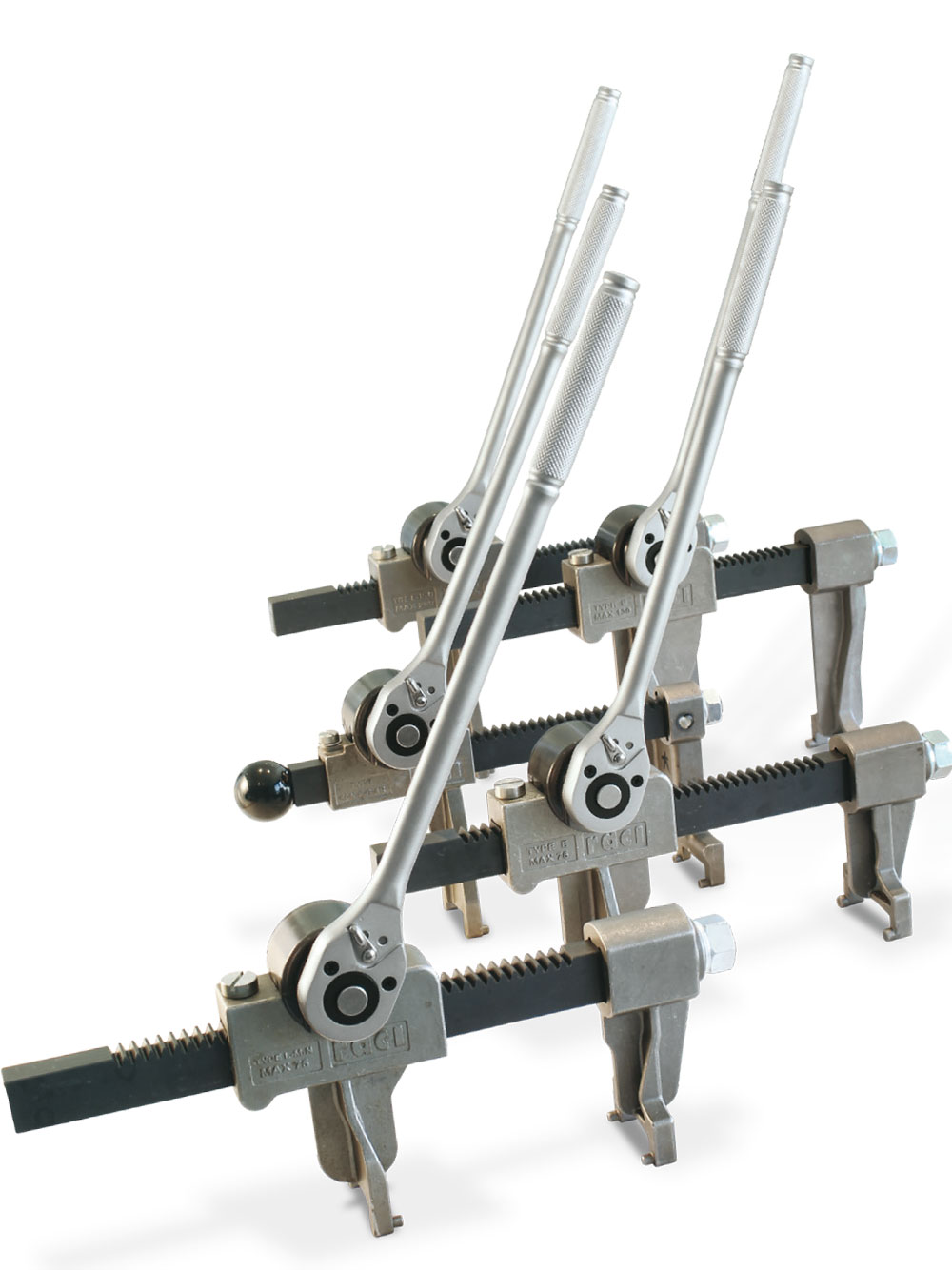

Combined gear and threaded rod spacers clamp tool.



accessori per collari distanziatori pinze di serraggio a cricchetto 1

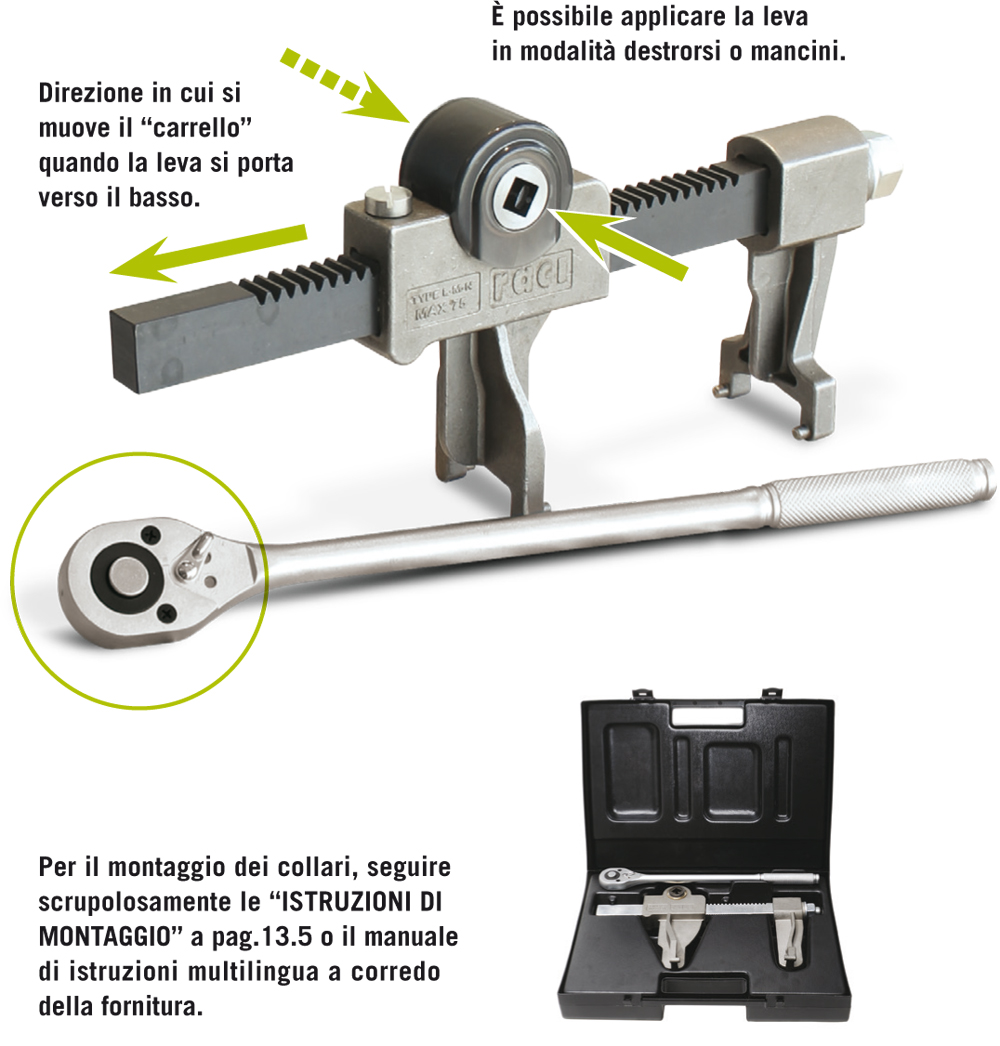

accessori per collari distanziatori pinze di serraggio a cricchetto 2





CHARACTERISTICS:
  • Movable and fixed stainless steel jaw with high strength.
  • Threaded chrome rod with special nitrating treatment to increase the mechanical strength.
  • Operating by standard reversible ratchet key tool provided by safety lock device.
  • Simple and basic design with few elements.
  • Protection cap upon rotating gear to assure hand safety.
  • Reduced clamping torque thanks to the big dimensions of the gear.
  • New concept in handling: completely universal both referring hand hold and tightening direction.



MATERIALS:

Main body (fi xed and mobile jaw):
stainless steel X5CRNICUNB16-4 - aIsI 630

Wheel pin:
Hardened steel gear

Gear:
Hardened steel 38 n d4

Self-lubricating bushing:
synthesized steel

Protective cap:
Polycarbonate

M12 buffer and nut:
stainless steel a2

Threaded rod:
Galvanized hardened steel 40CRMNMO7 - aIsI P20
