bullet acquedottoFLANGE AND CONNECTORS STEEL DISMANTLING JOINTS


MOD. 9850| PN 10 | DN  80-2000|
MOD. 9851| PN 16 | DN  80-2000|
MOD. 9852| PN 25 | DN  80-2000|
3-Flanges steel dismantling joints.

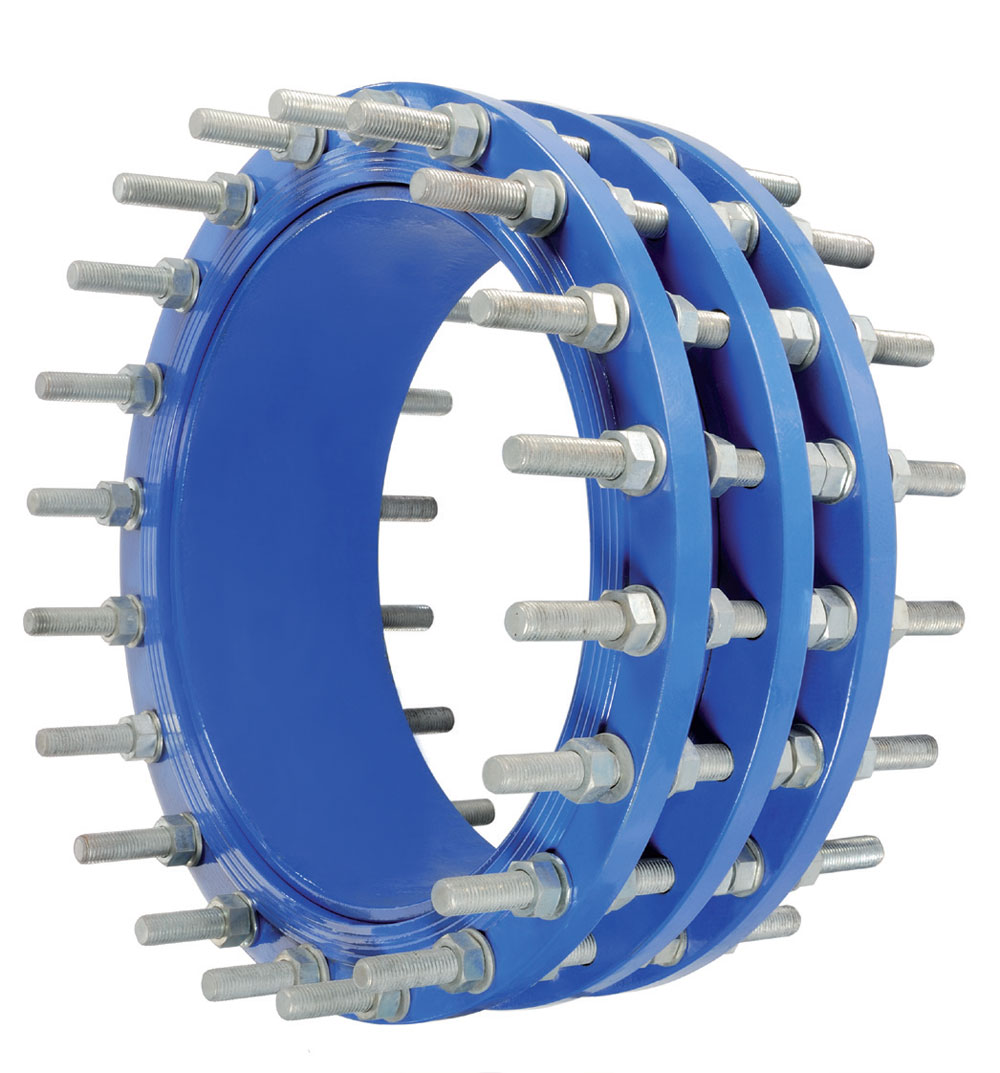

flange e giunti giunto di smontaggio in acciaio 1

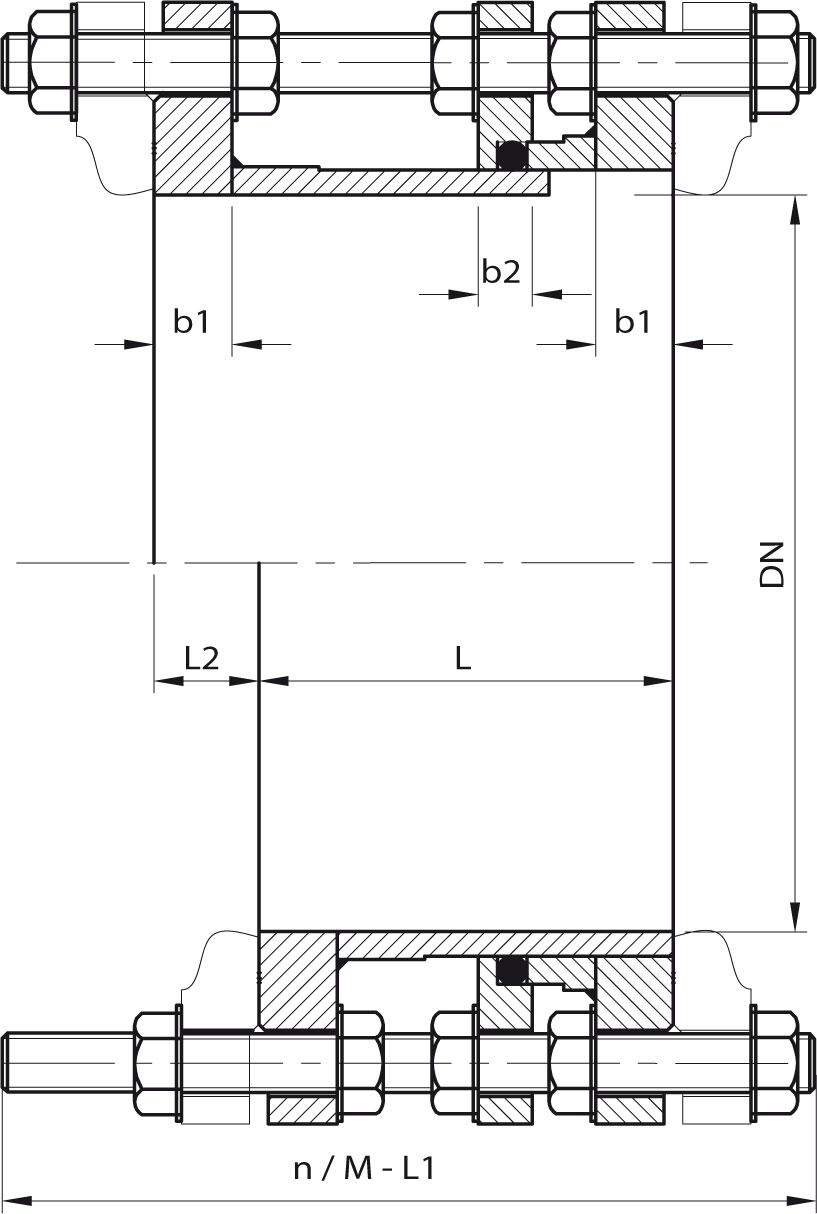

flange e giunti giunto di smontaggio in acciaio 2







SPECIAL FEATURES:

  • 3-flange-type, restraint.
  • Body high quality EPOXY powder coated, coating thickness DFT min. 250 microns.
  • Adjustable axial stroke in order to fit the application on site.

MATERIALS:

Body:
Steel S235JR, electro welded (equivalent to UNI Fe360B or DIN St 37.2) on demand: ductile iron EN-GJS-500-7 / EN 1563 (former to DIN GGG50)

Gasket:
Rubber, potable water approved

Bolts/nuts/washers:
Steel class 8.8, galvanised on demand stainless steel 1.4301 or 1.4401 (equivalent to AISI 304 or AISI 316)

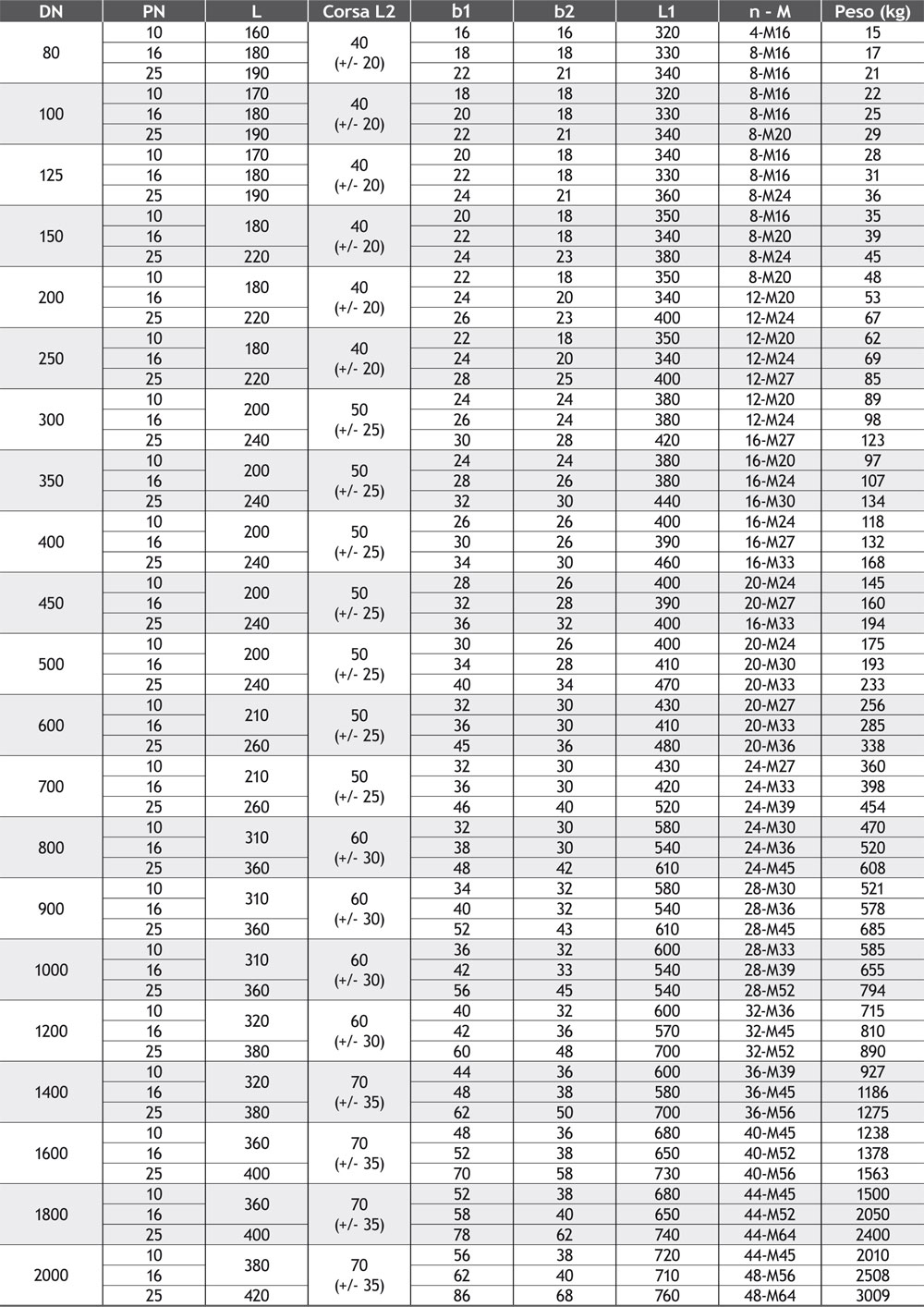

flange e giunti giunto di smontaggio in acciaio 3

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry decree n° 174, dated 6/4/2004.
