• Double flanged type.
• Design according to the requirements of EN 1074 and certified according to European directive 97/23/CE (PED) by third part organisation (module H).
• Body completely high quality EPOXY powder coated (fusion bonded).
• Face-to-face reduced dimensions according to EN 558-1 Series 13 -(former DIN 3202-K1).
• Shut-off system without seat reducing the net flow section.
• Inside fully rubber lined by a sleeve, up to the rising profile on flange connection.
• Bearings in self-lubricated material with secondary O-Rings sealing embedded.
• Manual operation by lever (standard equipment up to DN 200) or by gearbox and handwheel (DN>200).
• On request, the valves could be equipped by extension spindle (for underground installation), electric or pneumatic actuators.

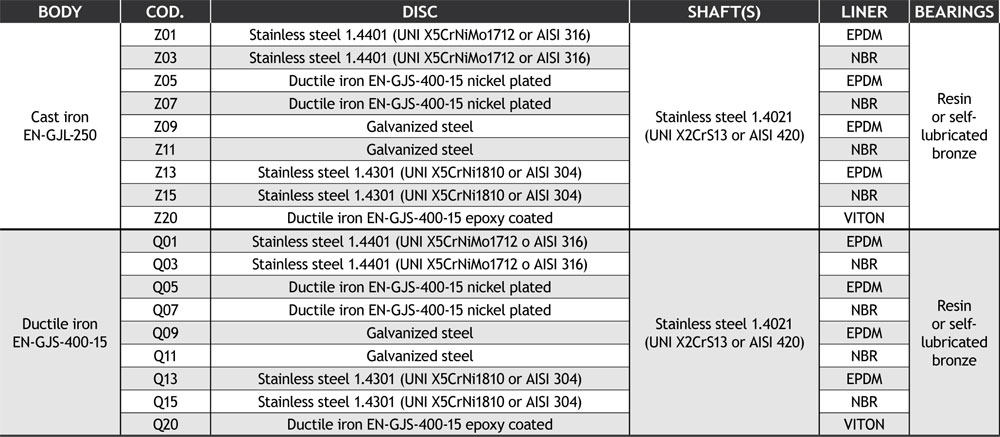

MATERIALS:

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry decree n° 174, dated 6/4/2004.
